Location, Location, Location: Why Electrode Placement Matters
CLINICAL INSIGHTS

Location, Location, Location: Why Electrode Placement Matters

November 20, 2024• C-Booth Innovations• 6 min read

In a groundbreaking article published on EMS1.com, one of the leading platforms for emergency medical services with over 500,000 monthly visits, the critical importance of accurate electrode placement was highlighted—and the EXG™ system was featured as an innovative solution to this widespread challenge.

The Problem: Widespread Electrode Misplacement

12-lead electrocardiograms (ECGs) have become a cornerstone of advanced life support in EMS, with patient care guidelines calling for their acquisition across a wide range of complaints—from chest pain and difficulty breathing to syncope, general weakness, and arrhythmias. Despite being quick, non-invasive, and relatively inexpensive once the hardware investment is made, there's a concerning trend affecting the accuracy and reliability of these critical diagnostic tools.

Recent observational studies have revealed a startling statistic: only 5.8 to 41.6% of paramedics demonstrated correct placement of all electrodes on manikins. This isn't just an EMS issue—research shows that 64% of nurses and nearly 80% of cardiologists (specifically for V1 and V2 leads) also struggle with proper electrode placement.

Why Accurate Placement Matters

The consequences of misplaced electrodes extend far beyond simple technical errors. Considering the diverse shapes and sizes of patients, even slight variations in electrode position can significantly alter ECG readings and lead to:

  • False-positive anterior ST elevation:: Misplaced V1 and V2 leads may reflect false indicators of heart attacks
  • Appearance of incomplete right bundle branch blocks:: Creating confusion in diagnosis
  • Hidden inferior infarcts:: When limb leads are placed on the chest instead of limbs
  • False-positive lateral infarcts:: Leading to unnecessary interventions
  • Inconsistent baseline comparisons:: When EMS uses different placement than emergency departments

    • The EXG™ Solution: Innovation Meets Precision

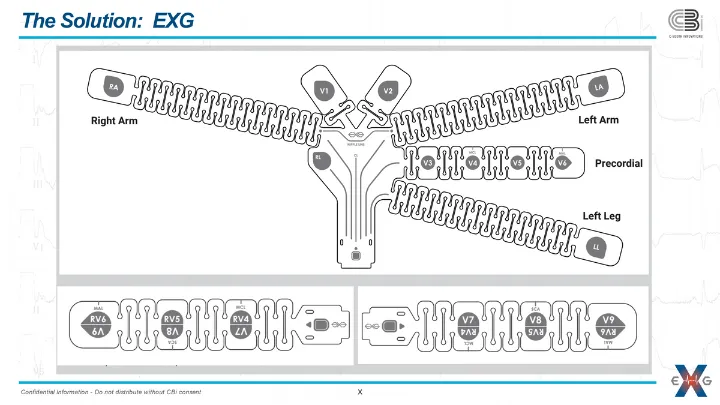

    As featured in the EMS1 article, C-Booth Innovations has developed a revolutionary approach to this 50-year-old problem. The EXG™ Radiolucent Electrode System, which received FDA registration in October 2023, represents a paradigm shift in ECG electrode technology.

    Key Features of the EXG™ System:

  • Integrated Design:: All 10 electrode sites incorporated into one adhesive device
  • Simple Placement:: Central portion placed over sternum with marker aligned at nipple line
  • Consistent Accuracy:: Eliminates guesswork and ensures reproducible lead placement
  • CPR Compatible:: Can be used during chest compressions
  • Radiolucent:: Allows chest X-rays, CT scans, and cardiac cath procedures without removal
  • Universal Compatibility:: Works with existing ECG and multi-function monitors via reusable adapter

    • Industry Recognition and Availability

    The EXG™ system has garnered significant attention in the emergency medical services community, being named a finalist in the 2023 EMS World Innovation Awards. This recognition, combined with the unsolicited feature on EMS1.com, underscores the pressing need for this technology in the field.

    The EXG™ 12-lead stickers retail for $10-12 each, with a 3L Extension available for $5-6 to acquire right-sided or posterior ECGs. Required one-time purchases include the universal adapter ($100) and cable ($100).

    The Path Forward

    As the EMS community continues to recognize the critical importance of accurate electrode placement, solutions like the EXG™ system represent not just technological advancement, but a commitment to improved patient outcomes. By eliminating the variability inherent in traditional electrode placement methods, we're taking a significant step toward more reliable cardiac diagnostics in emergency and pre-hospital settings.

    Note: This article references content from "Location, location, location: Electrode placement matters" published on EMS1.com on November 21, 2024, and highlights C-Booth Innovations' EXG™ system as featured in that article.
